Protocols
| SSH | VNC | RDP | Telnet | |
|---|---|---|---|---|
| Default port | 22 | 5900 | 3389 | 23 |
| Handled by | Casvisor (Go) | Casvisor (Go) | Casvisor (Go, gordp) | guacd |
| In the browser | xterm.js terminal | noVNC canvas | Canvas | Guacamole terminal |
| Logs in with | Password, keyboard-interactive | VNC password | Username and password over NLA | Username and password |
| Copy and Paste actions | Not enforced yet | Enforced by the web client | No clipboard yet | Enforced by guacd |
| Needs guacd | No | No | No | Yes |
SSH
Casvisor connects with Go's golang.org/x/crypto/ssh, asks for a xterm-256color terminal, and relays it to xterm.js in the browser over a WebSocket. The terminal follows the size of the browser window.
Not yet: logging in with a private key, checking the server's host key (any host key is accepted, as guacd does by default), and connecting with your own ssh client, scp or SFTP through Casvisor. All three are on the roadmap. The terminal uses the browser's own copy and paste, so the Copy and Paste actions of a permission do not restrict it yet.
VNC
Casvisor opens the TCP connection to the VNC server and performs the RFB handshake itself, including VNC password authentication. The browser, running noVNC, is then offered a connection with no authentication, so the VNC password stays on the server. If the server rejects the password, the reason it gives is shown to the user.
The toolbar over the screen has full screen, a clipboard dialog and key combinations such as Ctrl+Alt+Del. Clipboard text from the server is only passed on when the user's permission includes Copy, and text is only sent to the server with Paste. This check is made in the web client.
RDP
Casvisor connects to RDP itself with gordp, a pure-Go RDP client written for it. Casvisor negotiates TLS and Network Level Authentication (CredSSP with NTLMv2) with the server, logs in with the asset's account, and sends the screen to the browser as image tiles, with mouse and keyboard going back the other way. The password never leaves the server. It is tested against Windows Server 2022 in its default configuration.
What it does not do yet:
- Clipboard. There is no clipboard channel, so nothing is copied in either direction whatever the permission says.
- Resizing. The desktop takes the size of the browser area when the connection opens and keeps it; reconnect to change it.
- Server certificate. Any certificate is accepted, as most RDP clients do for self-signed server certificates.
- Drive redirection, file transfer and RemoteApp. The Upload and Download actions are reserved for file transfer.
- Newer graphics codecs (RemoteFX, GFX, H.264). The server falls back to the bitmap codecs gordp decodes.
- Legacy RDP security. Servers that only offer it, without TLS or NLA, cannot be reached.
Telnet
Telnet goes through guacd and is shown as a terminal. Without Copy in the permission, Casvisor tells guacd disable-copy, so nothing on the remote clipboard reaches the browser; without Paste, disable-paste. guacd enforces both, so a user cannot get around them from the browser. Use Telnet for network gear and old systems that have nothing else; it sends everything in clear text between Casvisor and the device.
guacd
Only Telnet needs guacd. Casvisor talks to it at guacamoleEndpoint (default 127.0.0.1:4822). The all-in-one Docker image starts one inside the container. Elsewhere, run the official image:
docker run -d --name guacd -p 4822:4822 guacamole/guacdguacd needs to reach the Telnet hosts itself, since it is the one that connects to them. Do not publish port 4822 beyond Casvisor's host: guacd has no authentication of its own.
Handling Telnet in Go as well, so that one binary covers every protocol, is on the roadmap.
Connecting

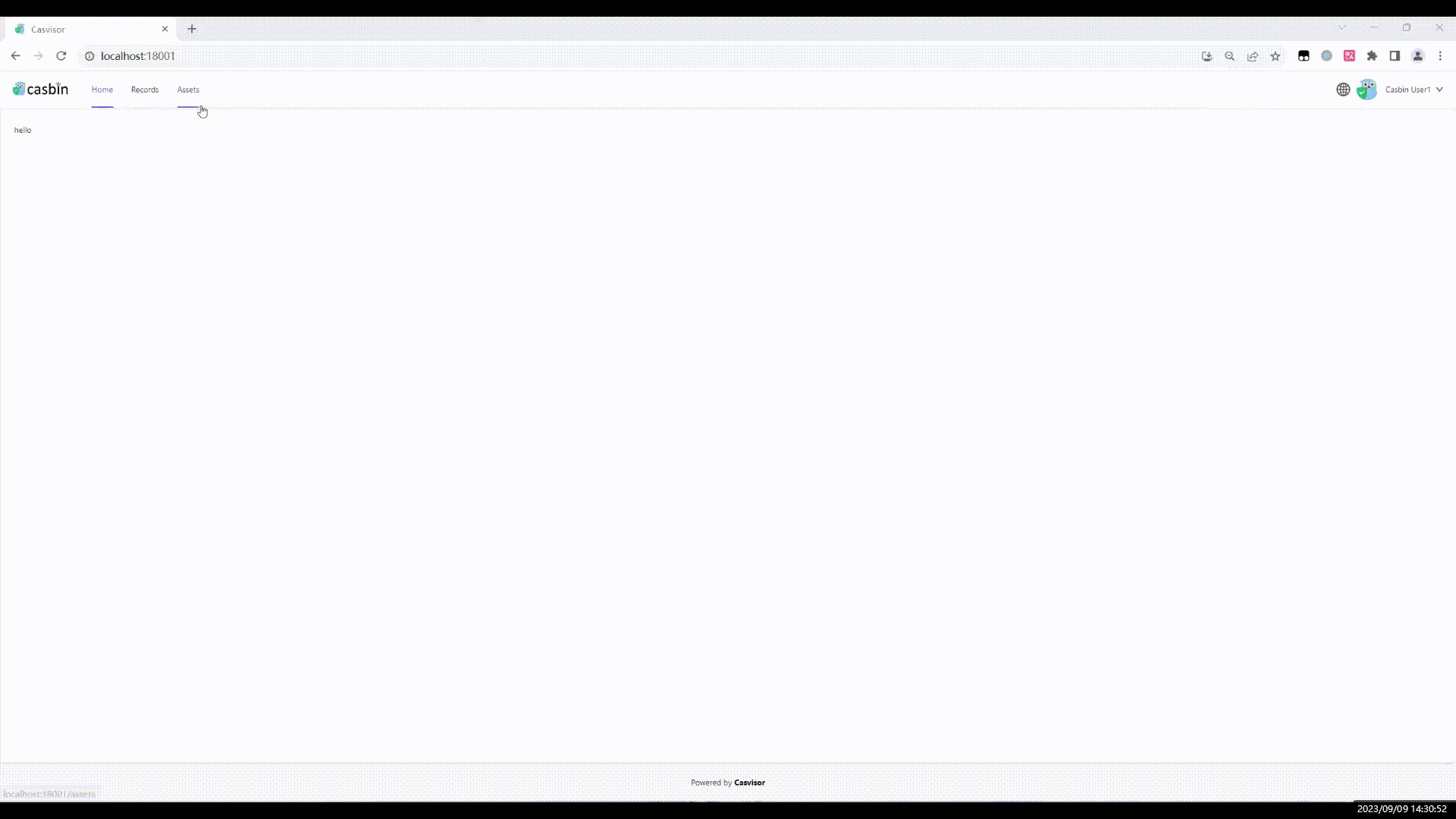

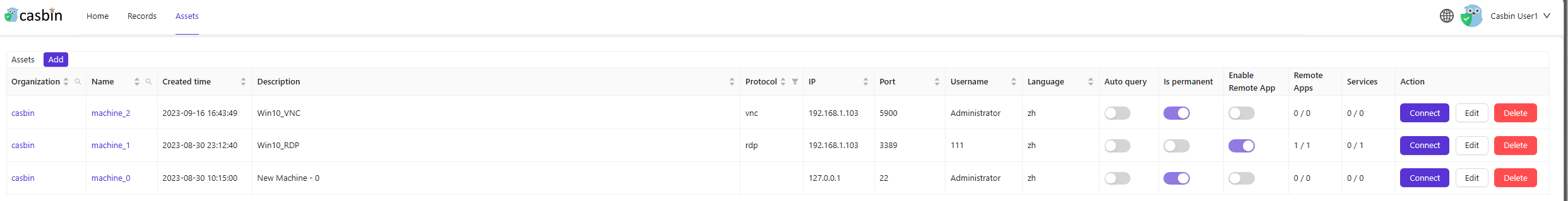

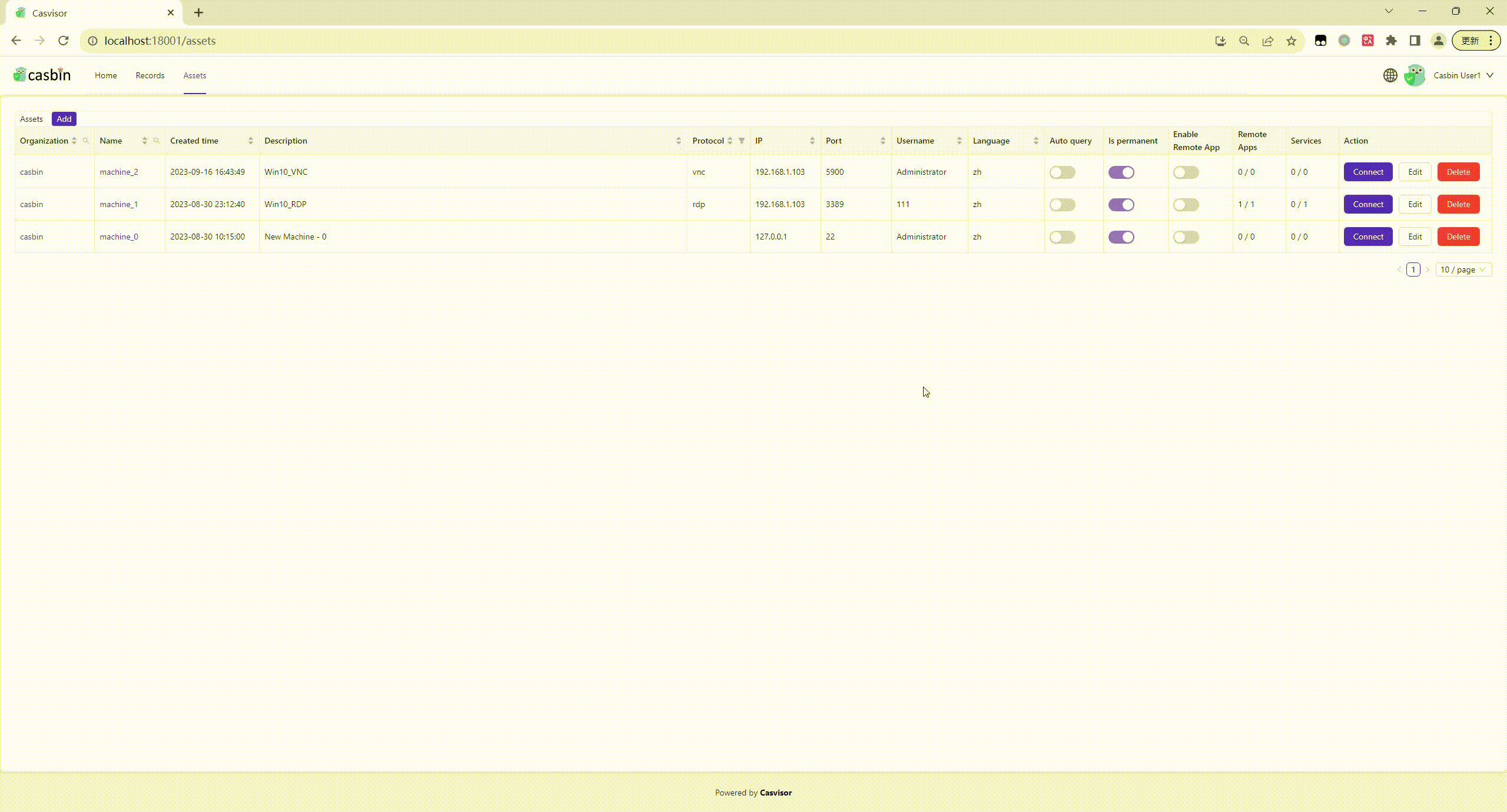

Users connect from the workbench, which lists the assets they may reach and opens each connection in a tab, or from an asset's Connect button, which opens it on a page of its own.
Users and administrators
Casvisor has two kinds of users: administrators, who manage assets, permissions and sessions and can reach every asset, and everyone else, who only gets the workbench and the assets their permissions give them.
